Layout Utilities allows users to update the status of multiple layouts simultaneously or replace fixtures or spaces in multiple layouts.

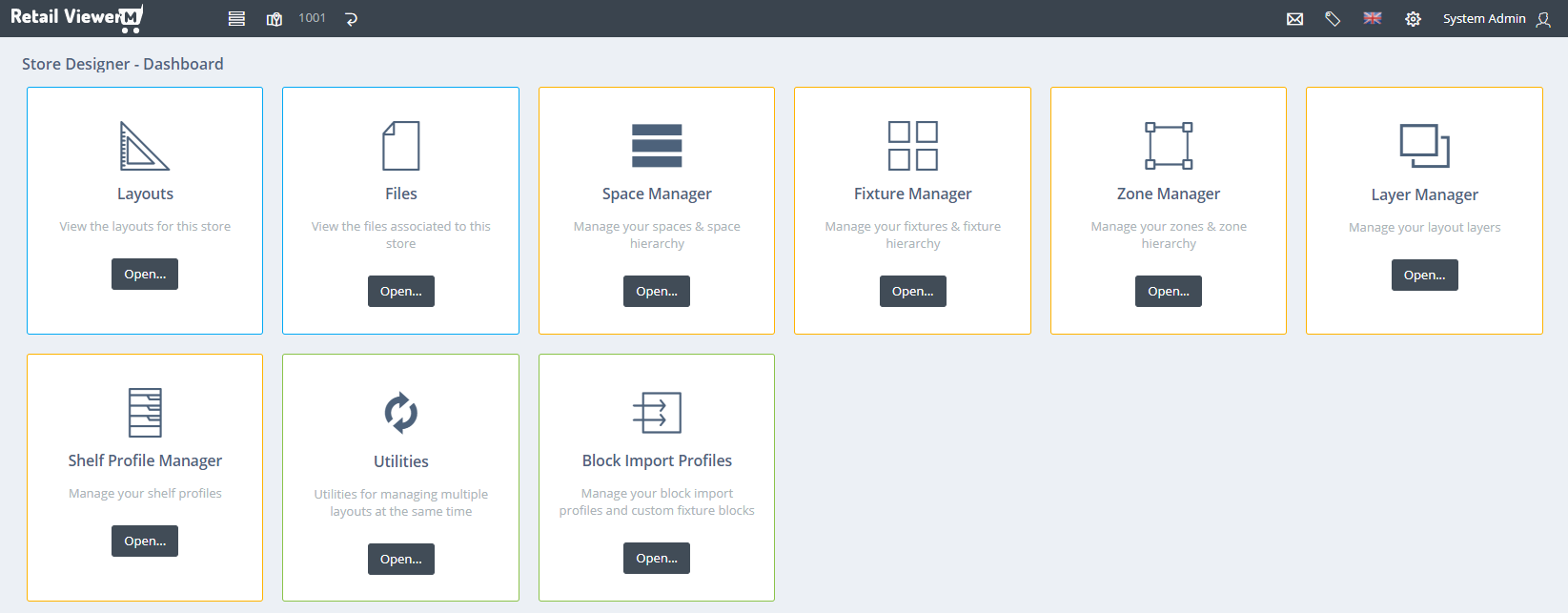

To launch Utilities, click the Open button on the Utilities tile on the Store Designer Dashboard.
.png)

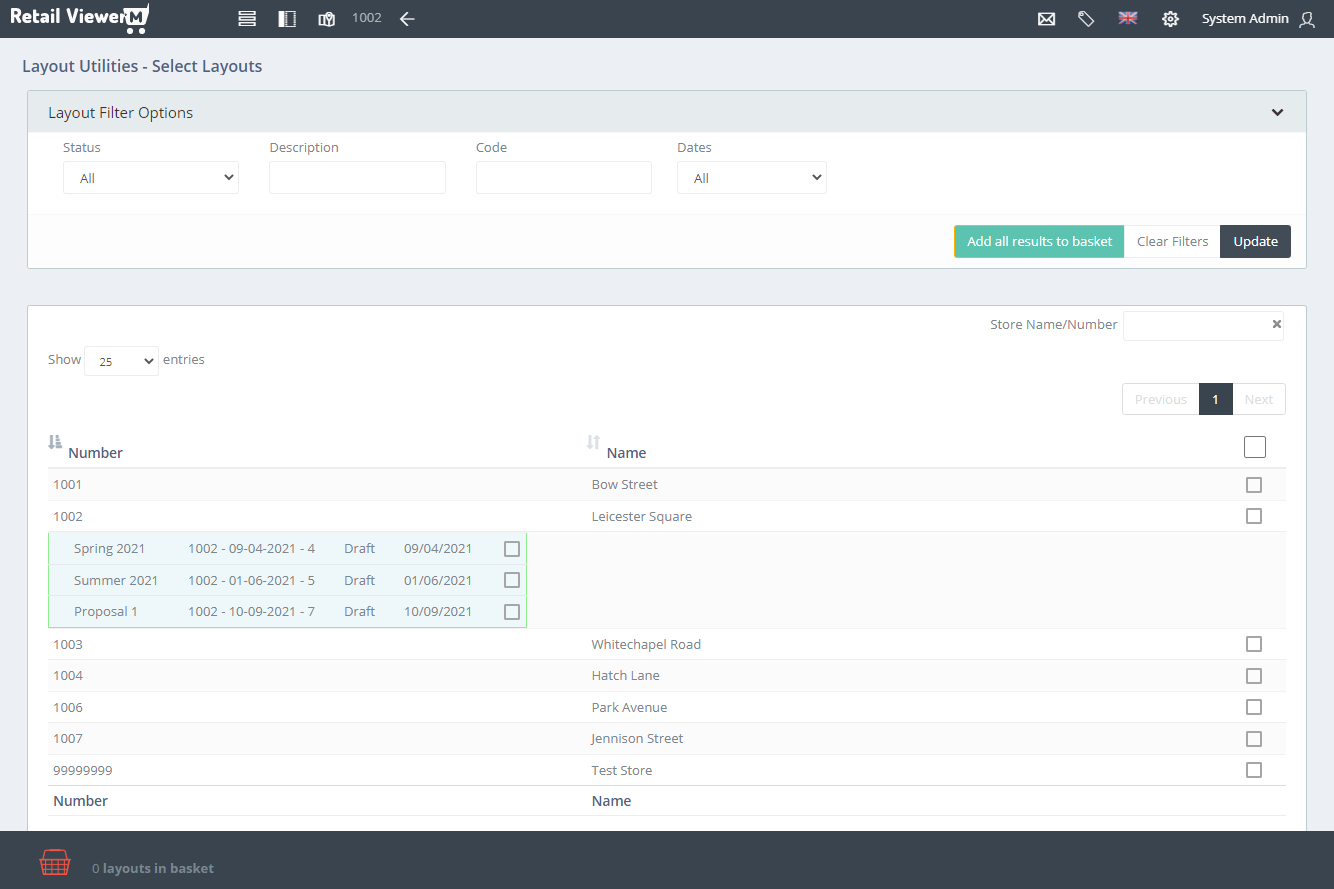

From the Utilities screen, you will be shown a list of stores that have layouts as well as a Layout Filter section.
.png)

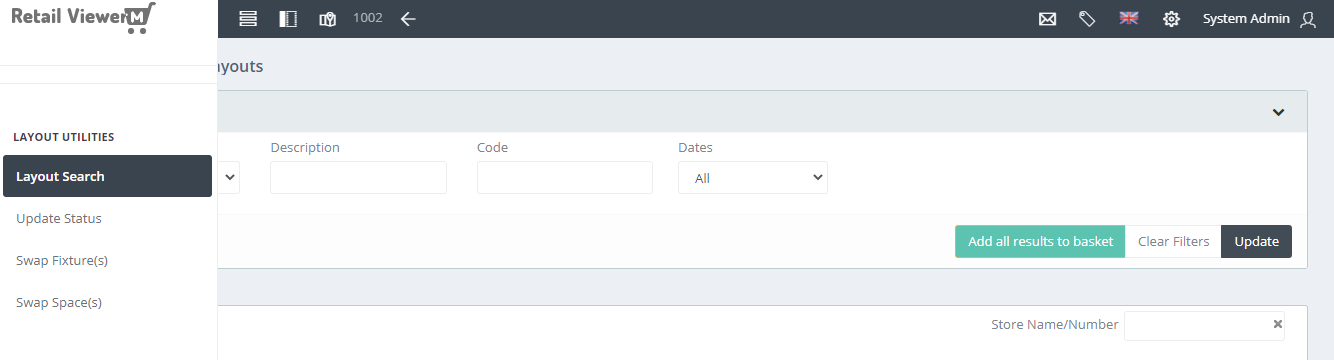

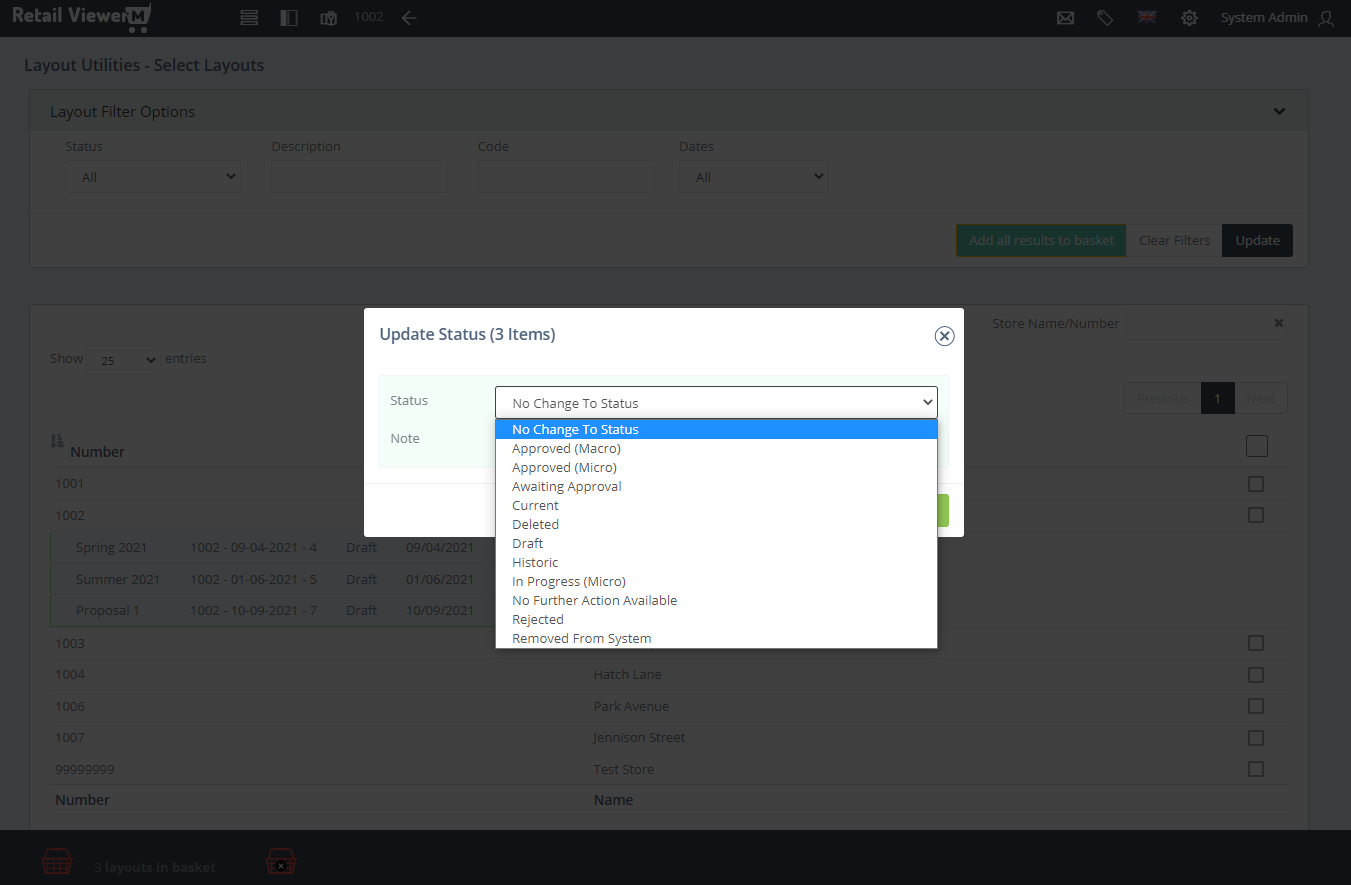

To update the status of the selected layouts, click Update Status on the left side panel.
.png)
.png)

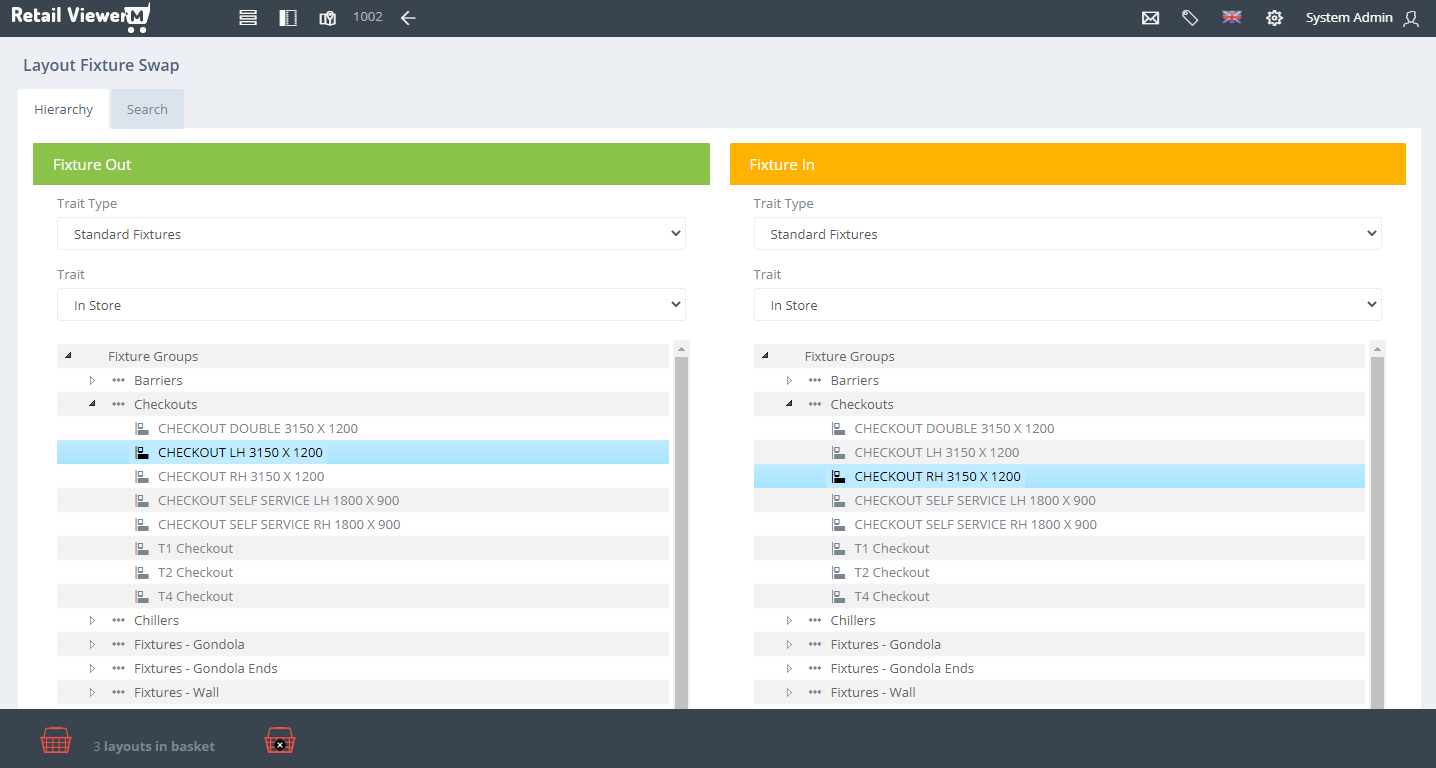

To replace one or several fixtures in the selected layouts with another fixture, click Swap Fixture(s) from the left side panel.
.png)
.png)
Note multiple fixtures out can be selected by holding down the CTRL button on the keyboard whilst selecting the fixtures.

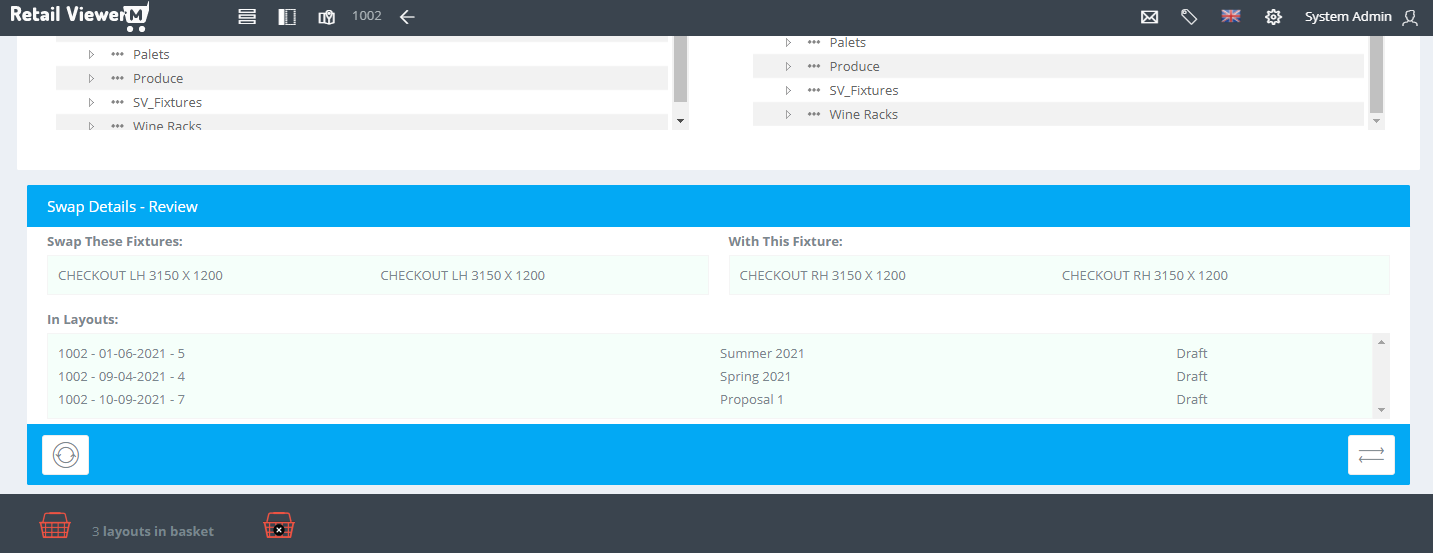

A summary of the swap is displayed at the bottom of the screen..png)

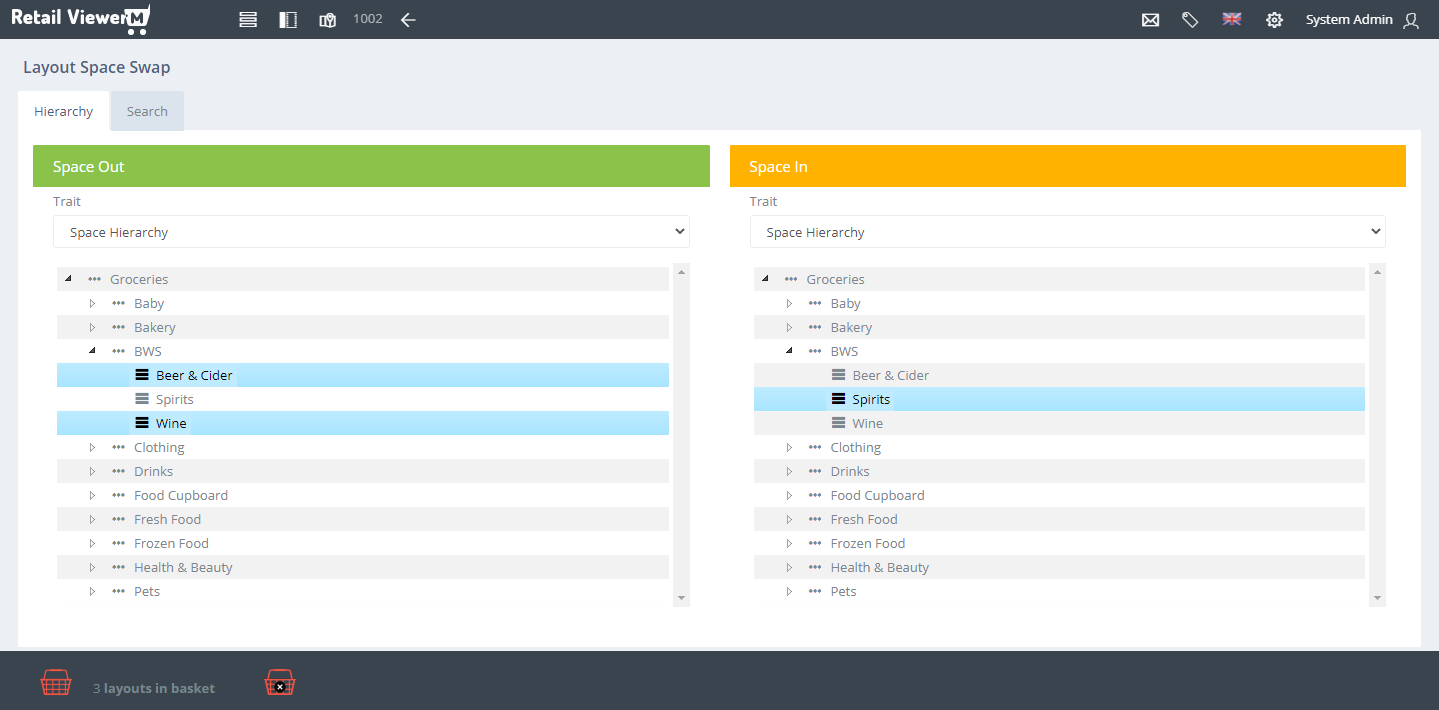

To replace one or several spaces in the selected layouts with another space, click Swap Space(s) from the left side panel.
.png)
.png)
Note multiple spaces out can be selected by holding down the CTRL button on the keyboard whilst selecting the spaces.

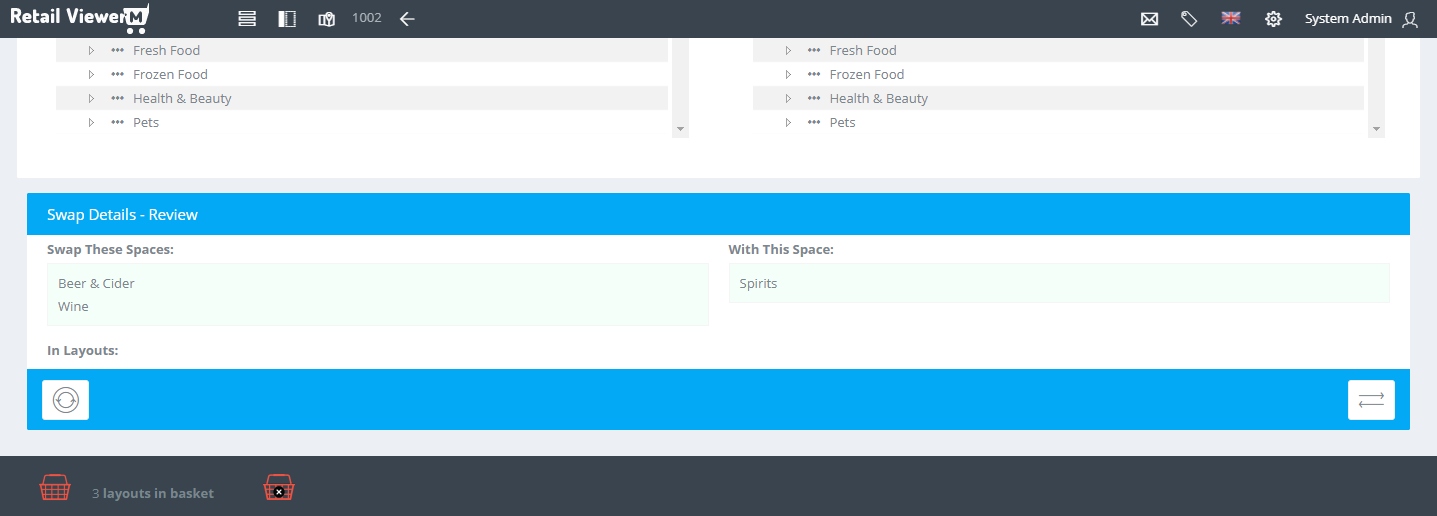

A summary of the swap is displayed at the bottom of the screen. .png)
|
