Navigation: Layouts >

Navigation Panel

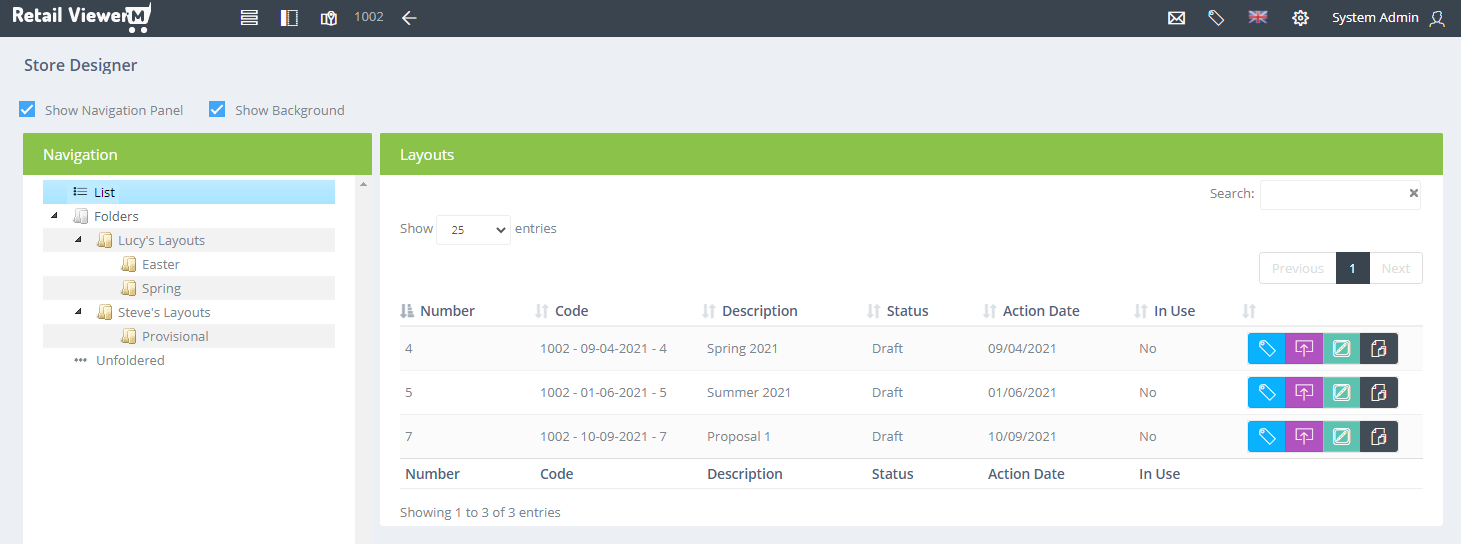

Layouts can be grouped in folders for organisational purposes. To open the navigation panel, tick Show Navigation Panel.

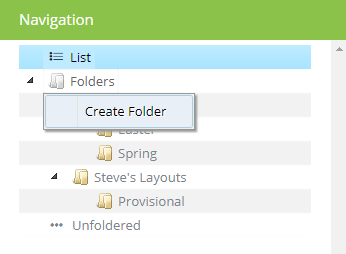

To create a new folder, right click on Folders and select Create Folder.

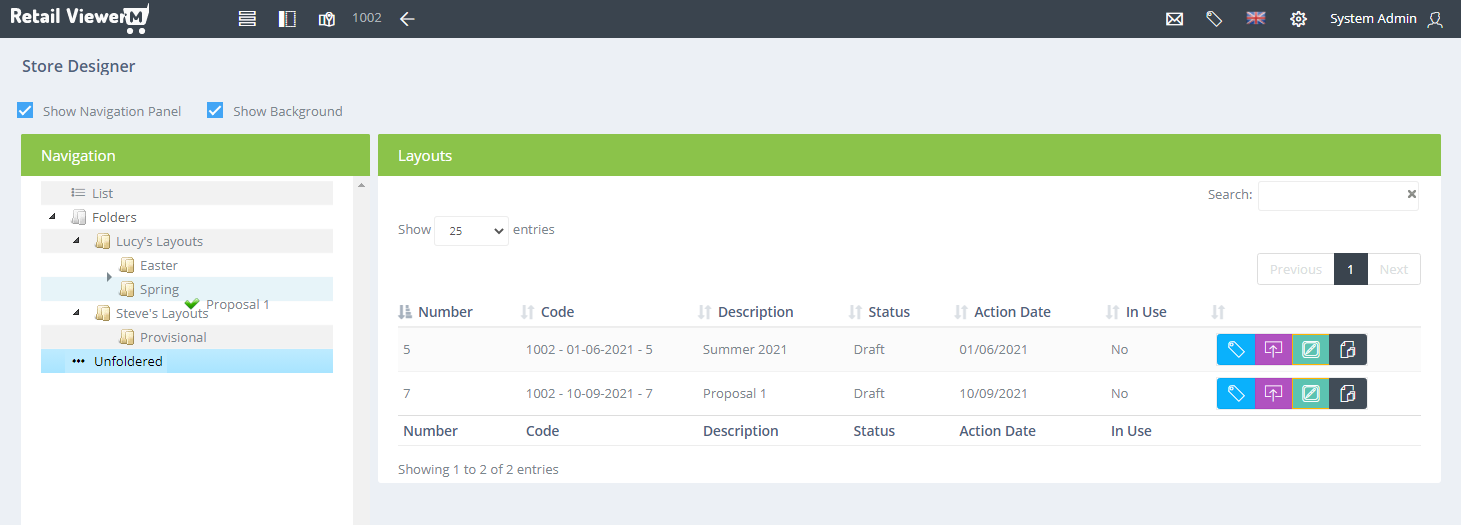

When initially created, layouts are placed in Unfoldered. To move a layout to a folder, click on Unfoldered and click and drag the layout to the required folder. Wait until the green tick appears beside the layout name to drop it into the folder.



Layouts can be moved between folders in the same way.



The List option in the Navigation Panel shows all layouts. Layouts cannot be moved to folders from here.



To rename or delete a folder, right click on the folder and select the appropriate option. If the folder is deleted, any layouts contained in it will be moved to Unfoldered.



Access to the navigation panel is configurable in the settings. See the separate Retail Viewer M Settings User Guide.
