Shelf Profiles can be assigned to a space or to a fixture location.

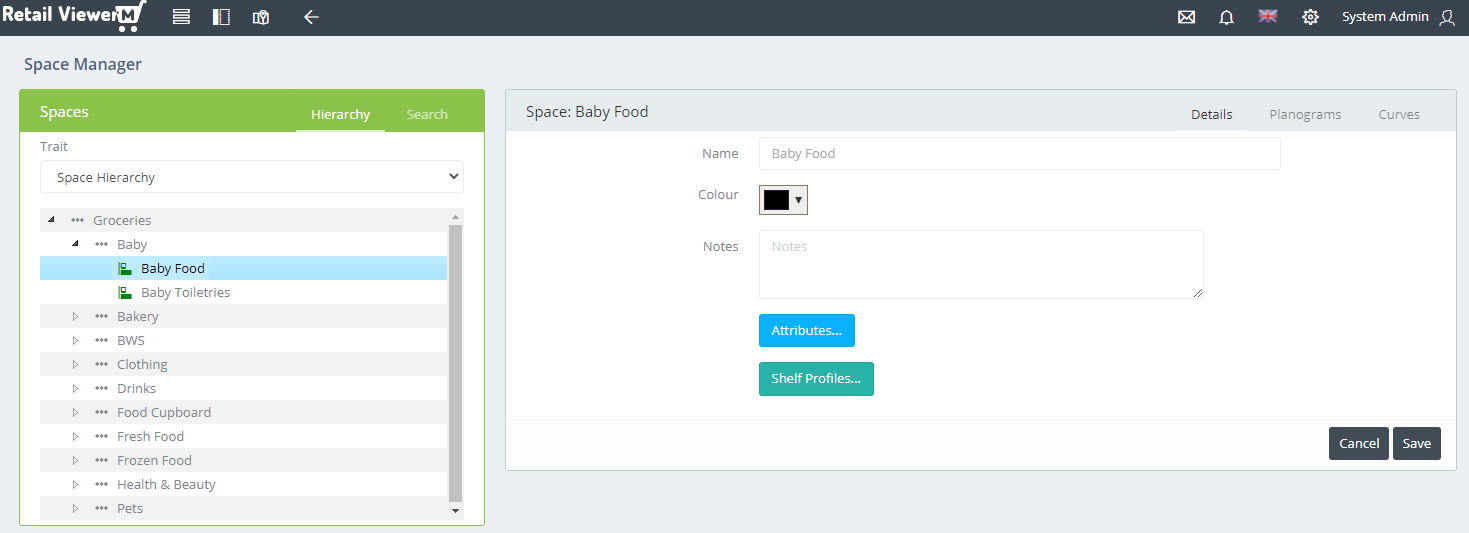

To assign to a space, go into Space Manager and locate the required space.
.png)

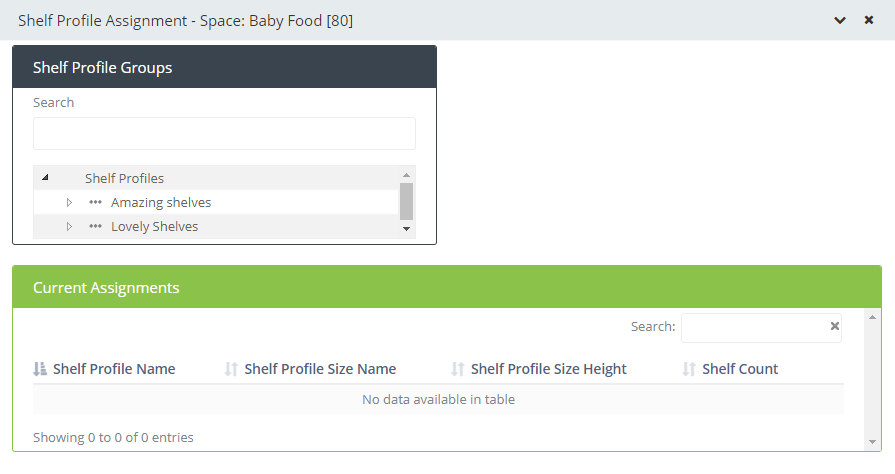

Click Shelf Profiles to display the Shelf Profile Assignment panel.
.png)

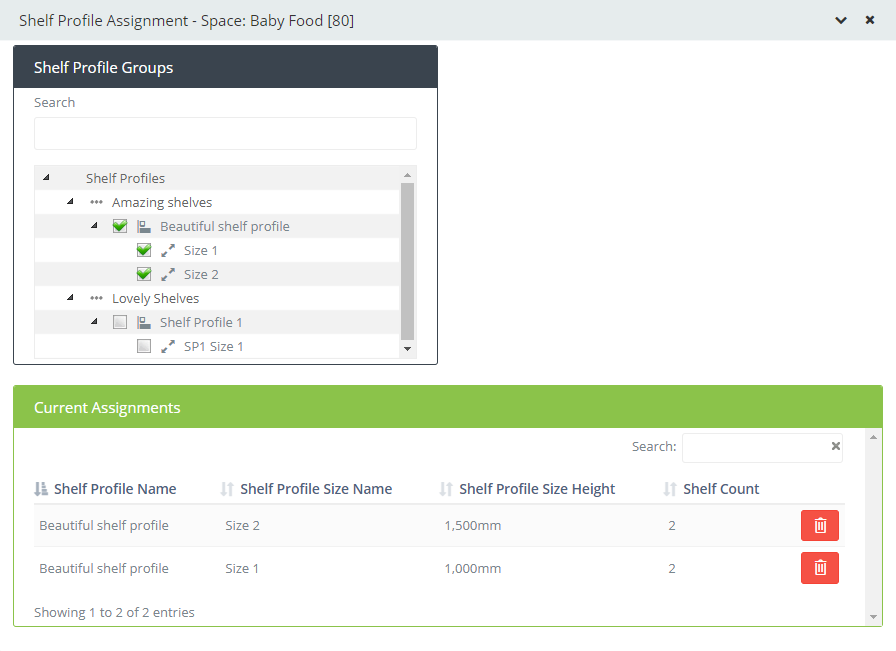

Select the required Shelf Profile sizes from the hierarchy. Note multiple sizes can be assigned to a space.
.png)
The Shelf Profile sizes are displayed in the right side panel in the layout when the space is selected.

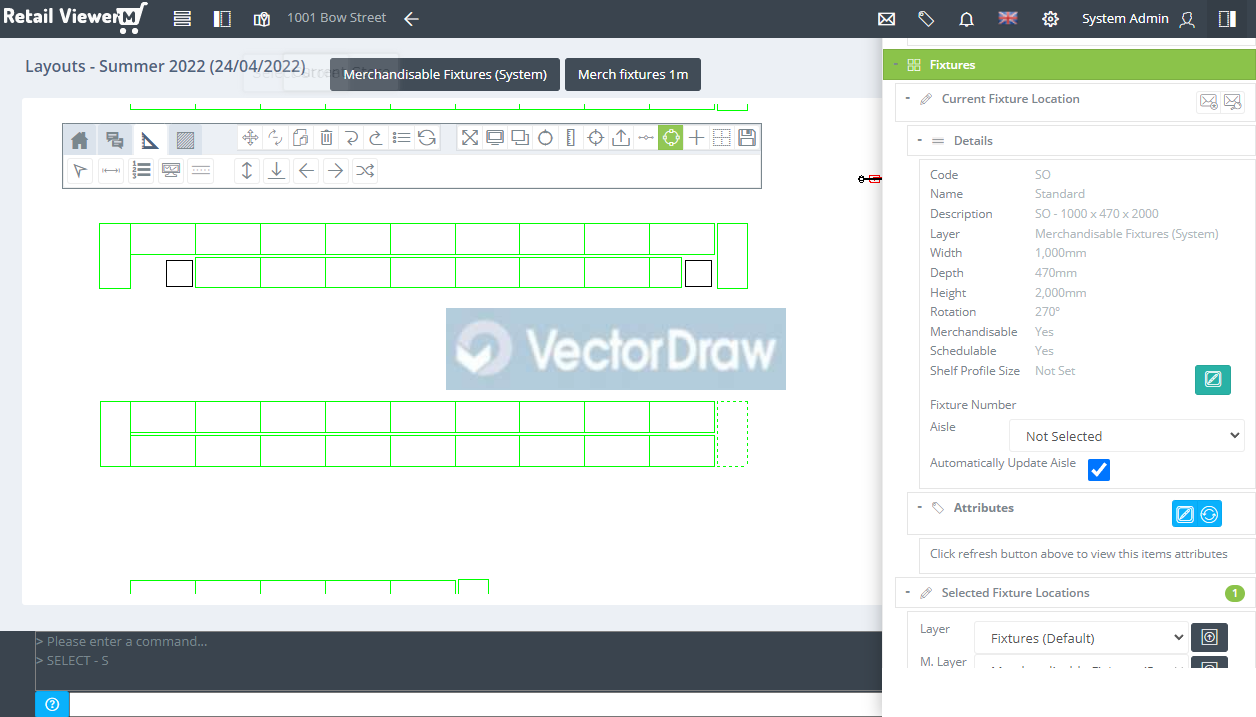

To assign to a fixture location, select the required fixture in the layout and open the right side panel. Click .png) to edit the shelf profile size.
.png)

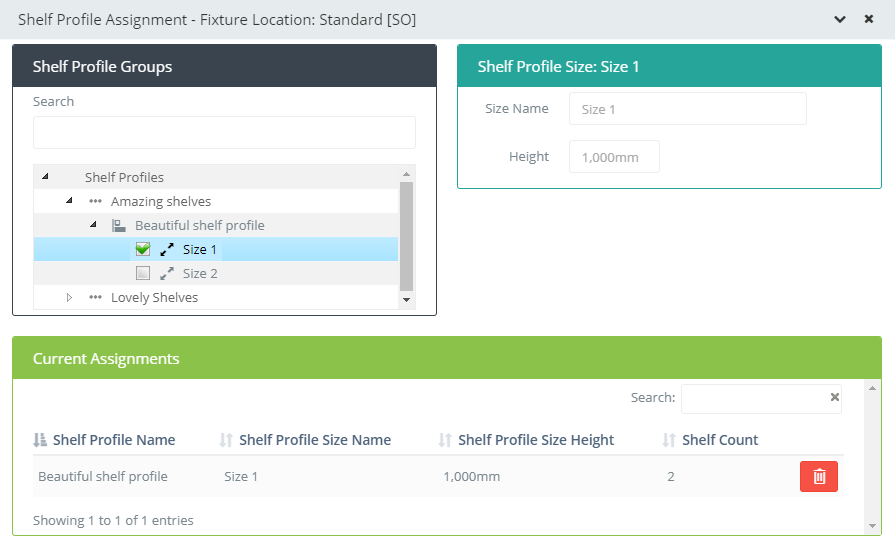

Select the required shelf profile size. Note only one size can be assigned to a fixture location.
.png)

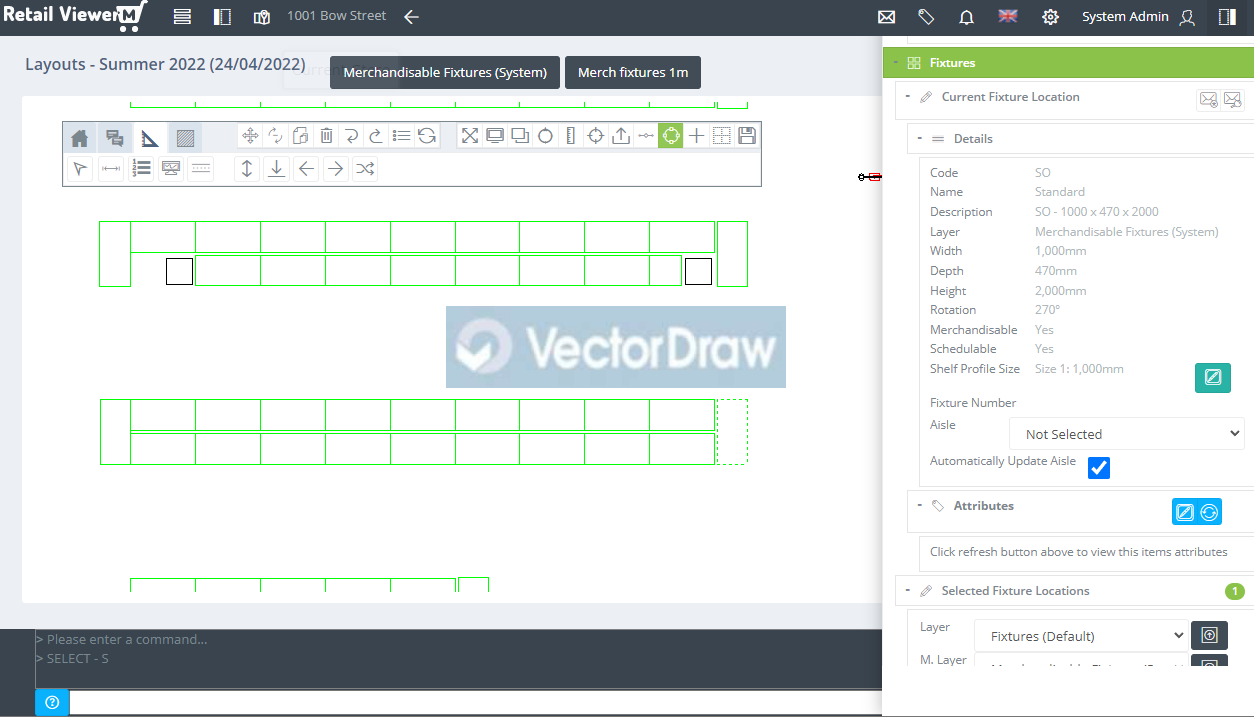

Once assigned the details show in the right side panel when the fixture is selected.
.png)
|
