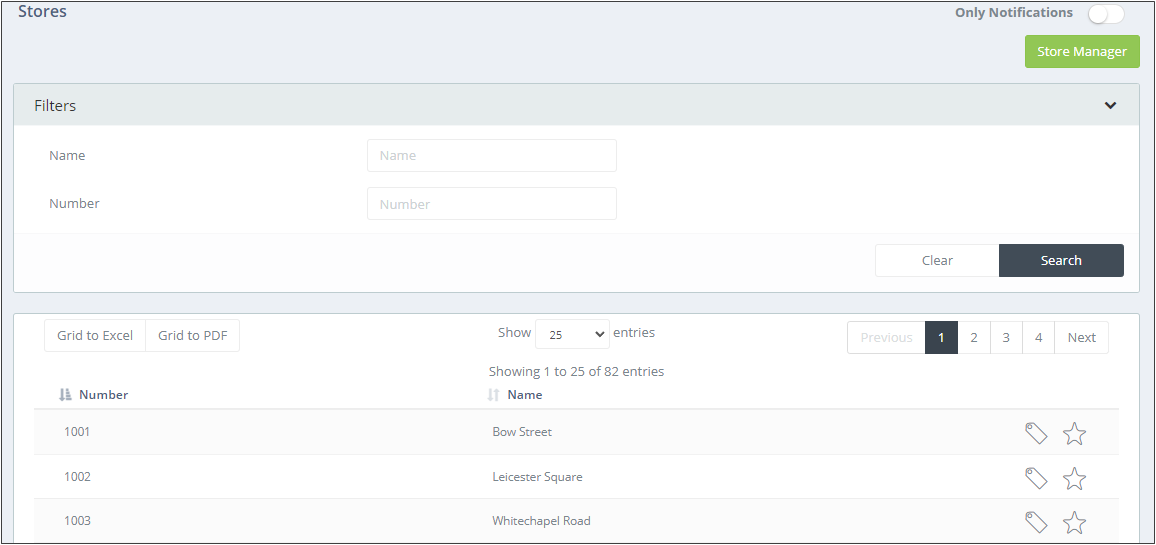

To work with store layouts, select a store on the Stores page.
.png)

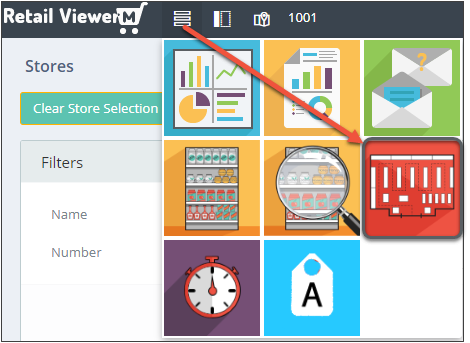

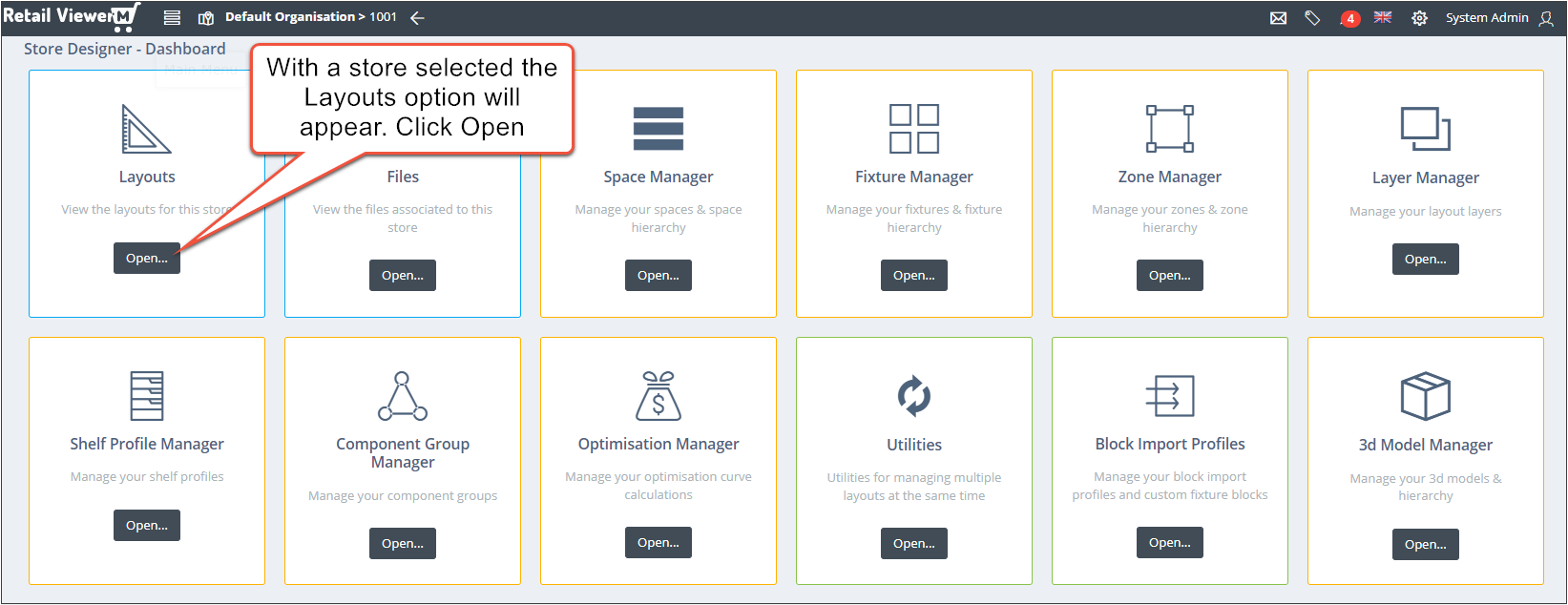

From the main menu, select Layouts.

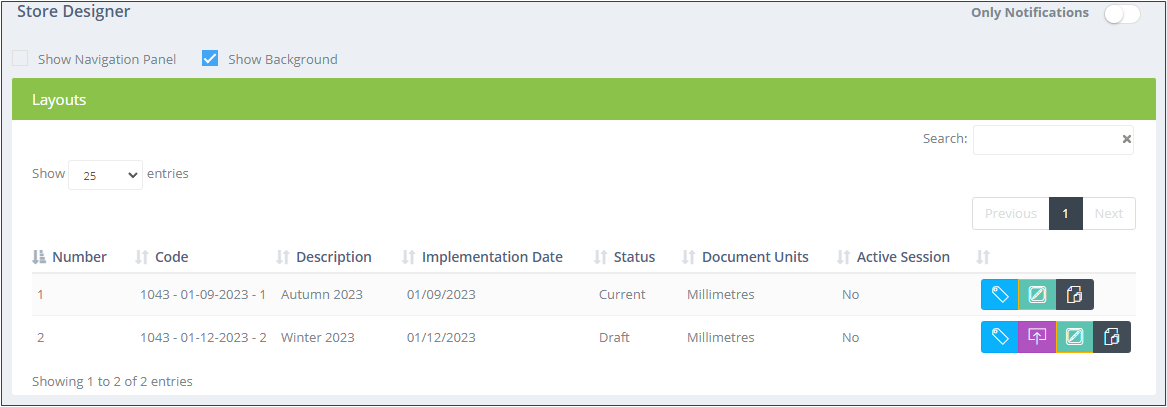

A list of floor plans will appear.
.png)
To open a proposed floor plan simply click on it in the list.

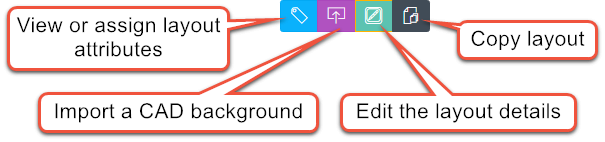

You can also view or assign layout attributes, load a CAD file as a background, edit the details of the plan, or create a copy, by clicking on the corresponding button.
.png)

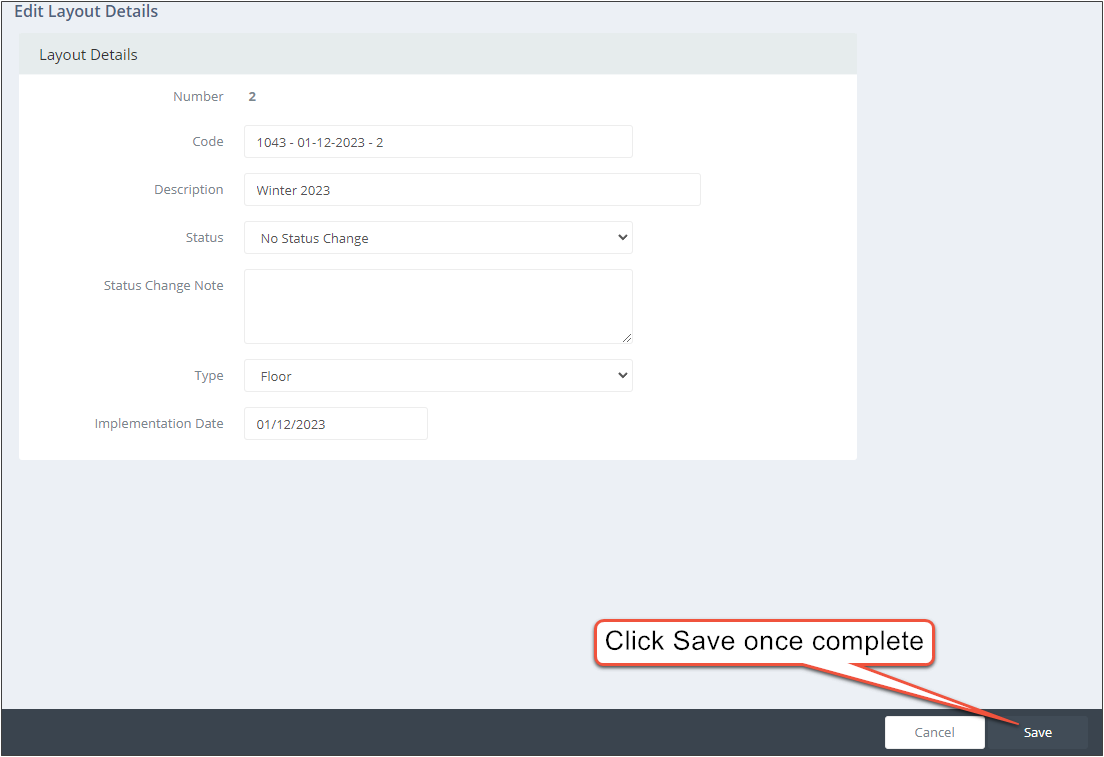

To edit the Layout Details, click the Edit button. The Code, Description, Status, Layout Type, and Implementation Date can be changed. A note must be added if the Status is changed.
.png)

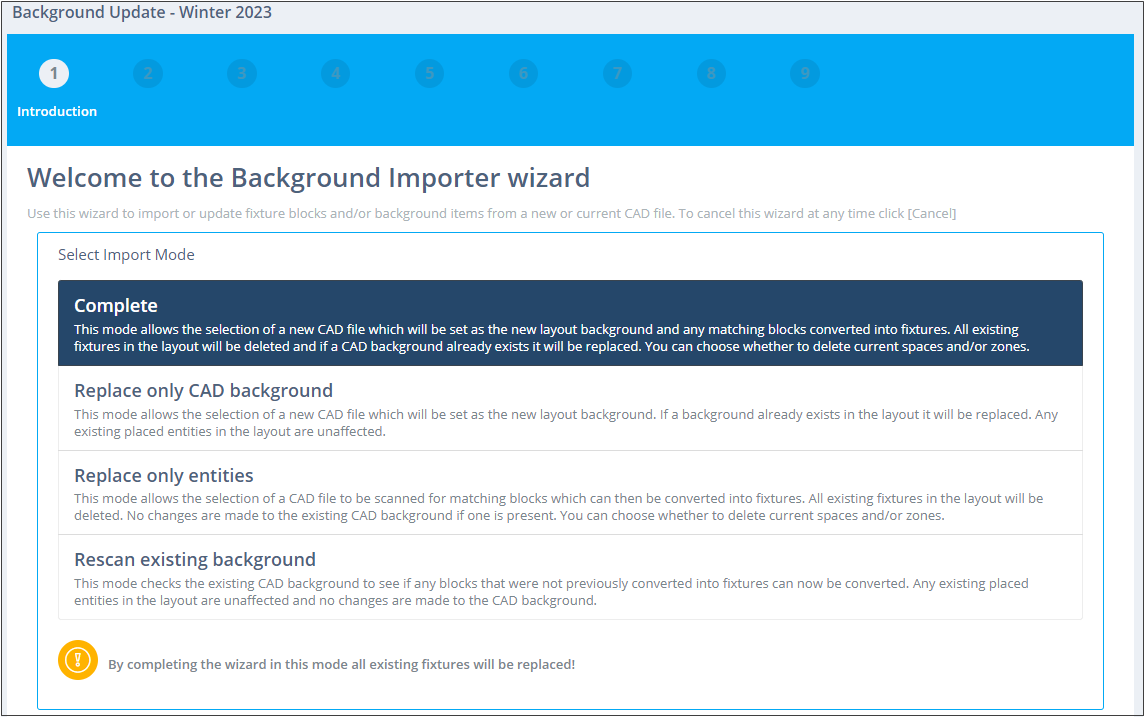

Clicking the Import Layout button  launches the Background Importer Wizard.
.png)
From here you can import a CAD file as a background to your drawing, either overwriting an existing background or bringing one in to a layout that has none. For more details on importing a CAD background, see Creating a New Layout.

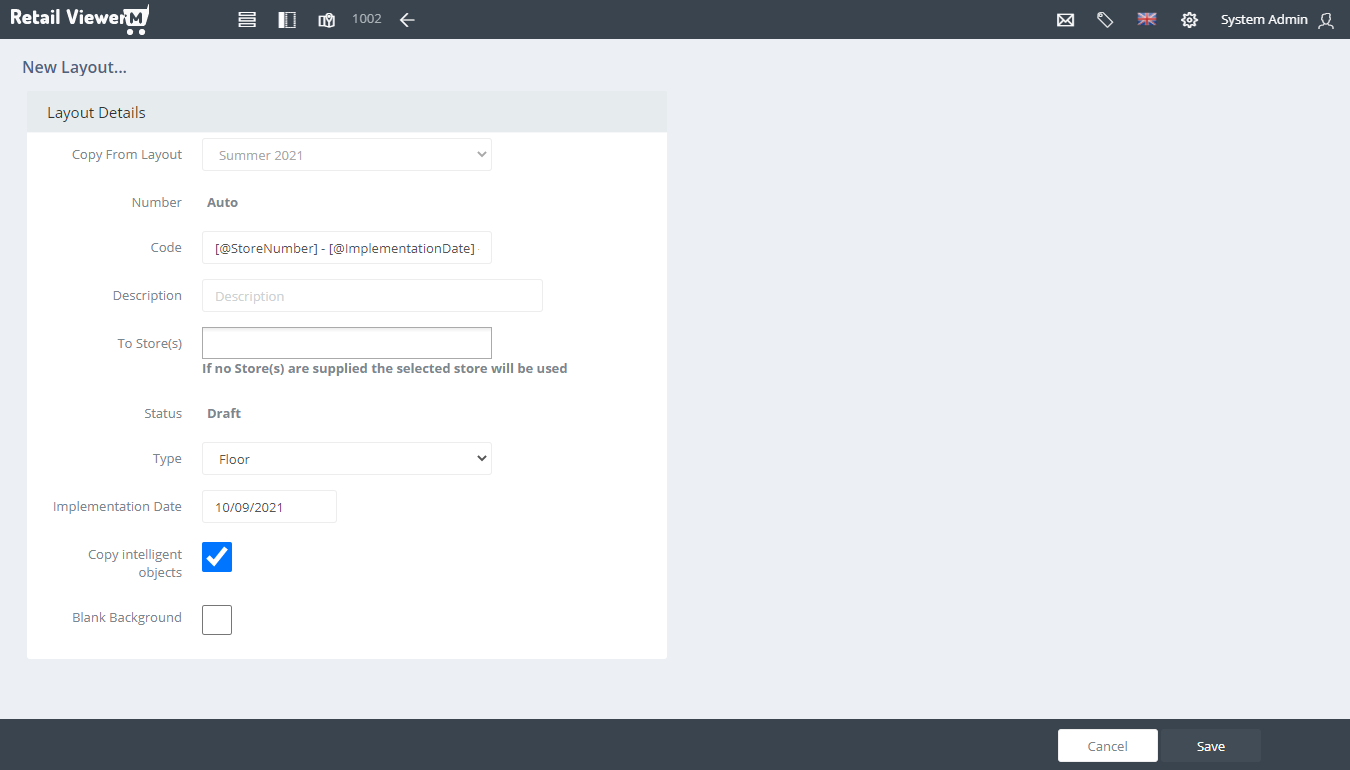

To create a new layout from an existing floor plan or to copy the floor plan to a different store, click the Copy Layout button .png) . For example, you would use this to create a new layout for the same store from the layout that is currently implemented. The New Layout screen will open.
.png)
|
