Use the Fixture Import Wizard to import fixtures from a CAD file.

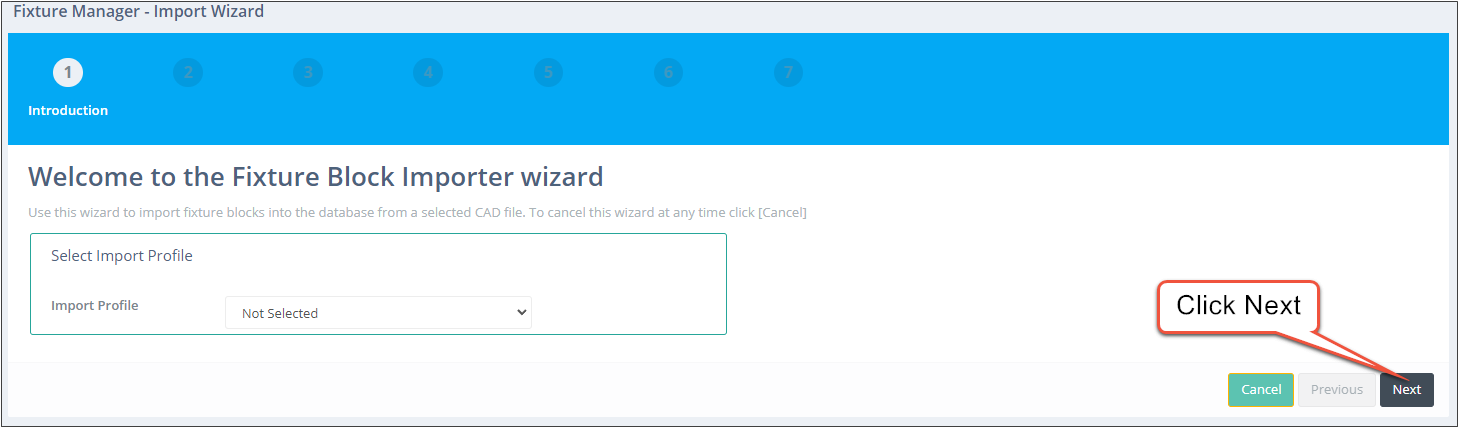

.png)

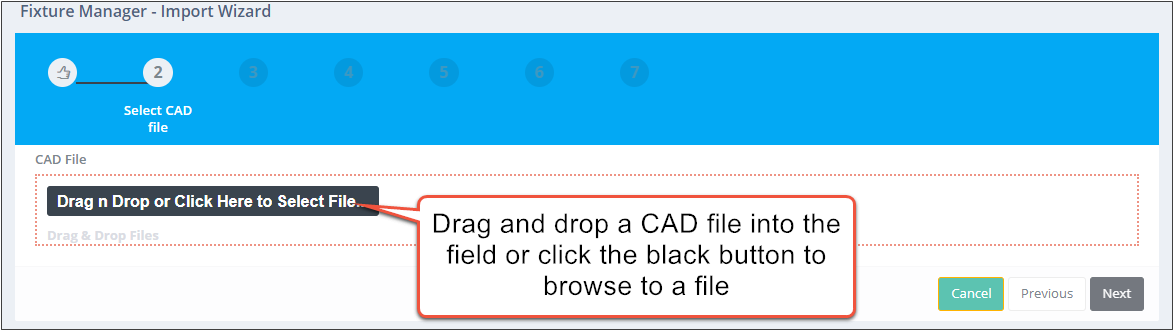

.png)

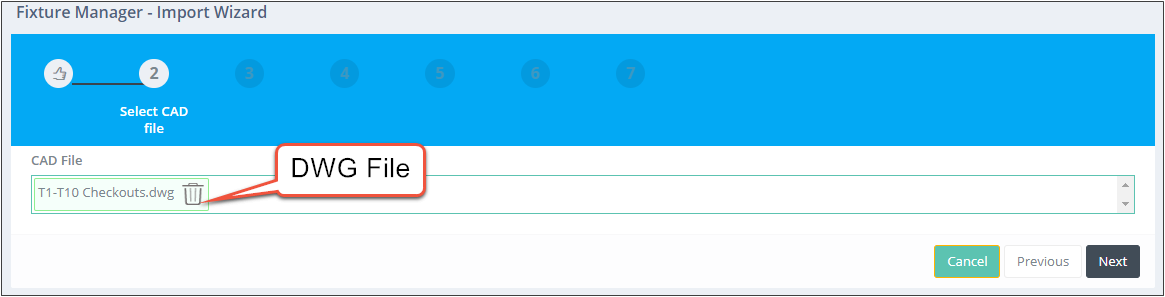

.png)

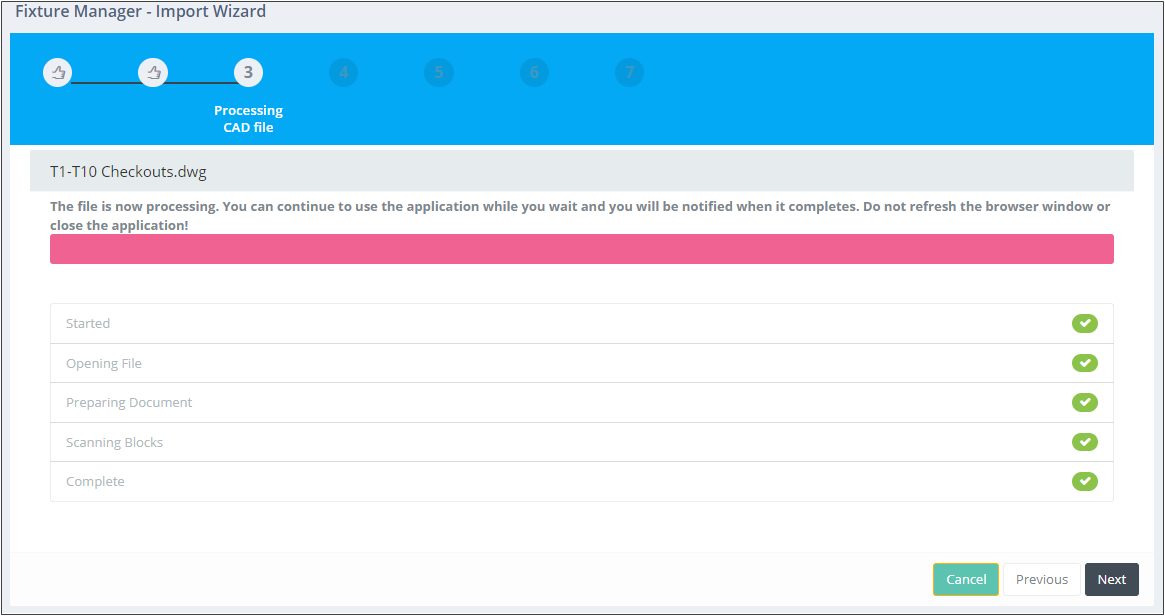

Once the file is processed, green checkmarks will be next to each process.

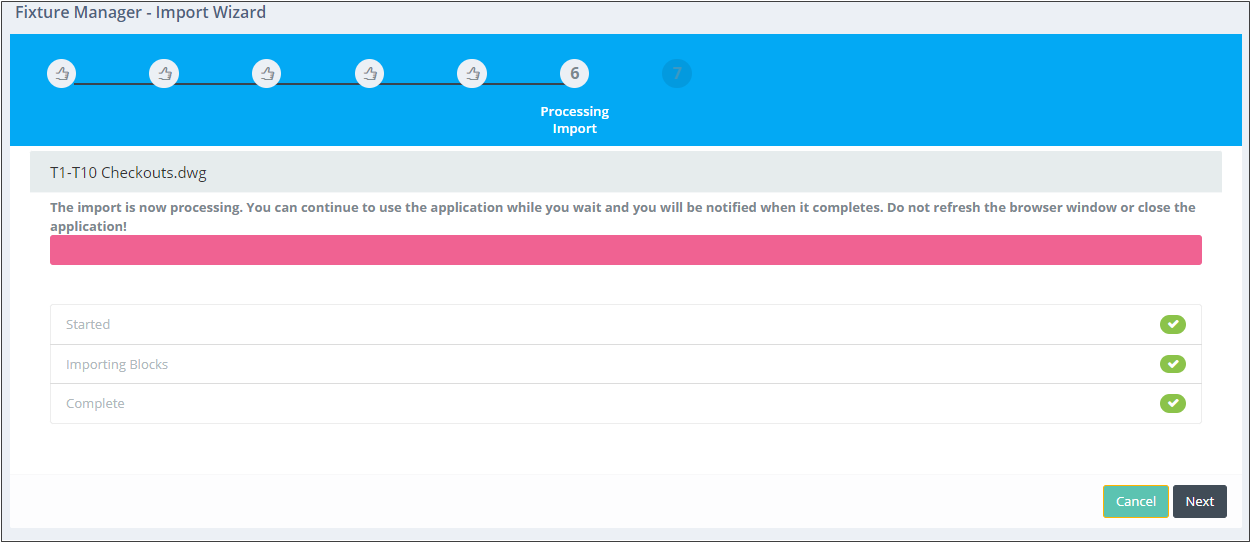

.png)

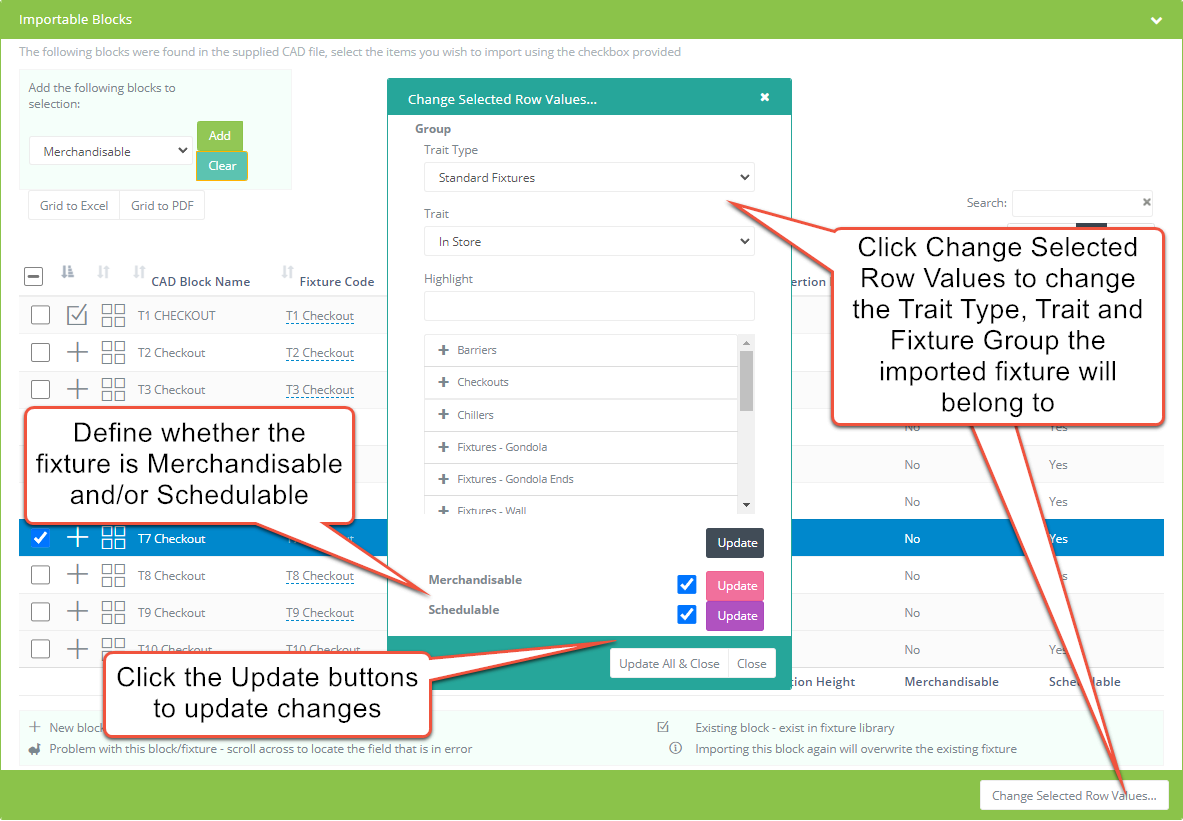

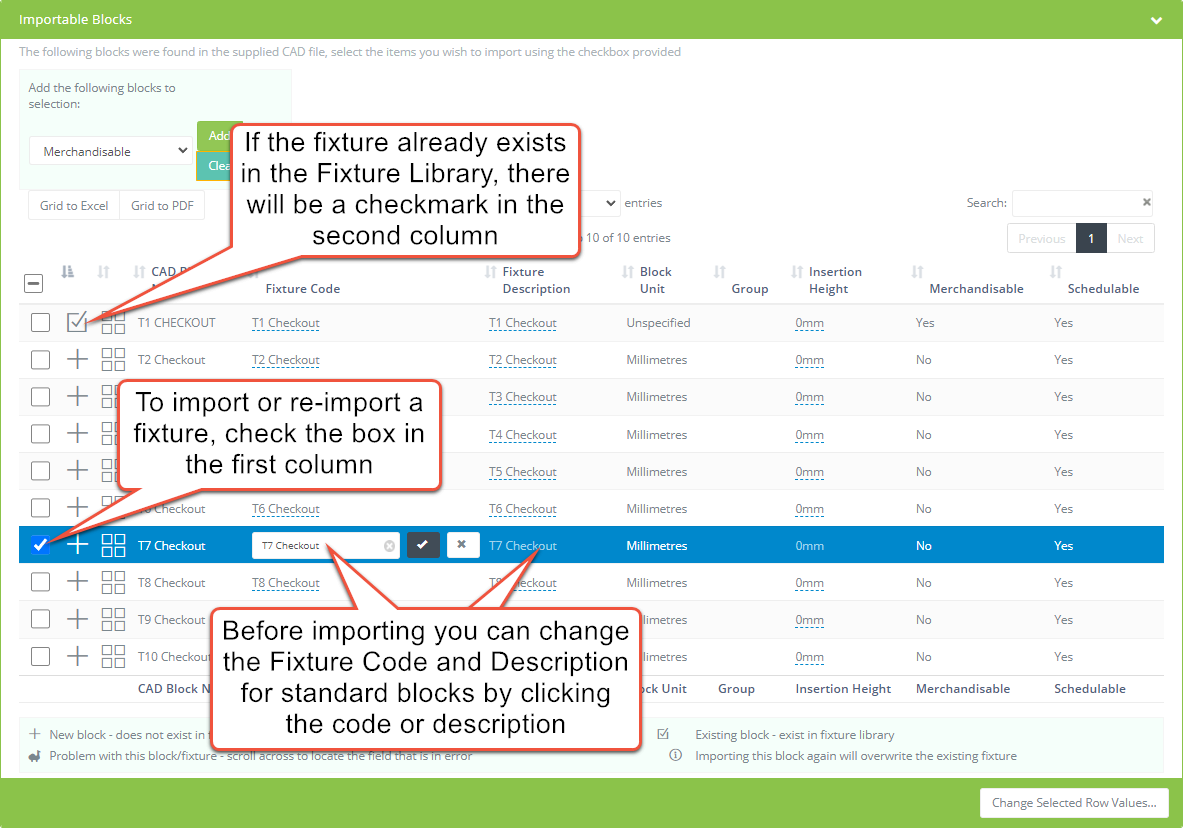

The tool scans the drawing for blocks which can be selected for import. Click Next.
.png)
.png)
.png)
Note that if a block has a unit specified against it in the drawing being imported, this will be the unit it is imported in. Any other blocks will be imported in the units specified in Input Units.

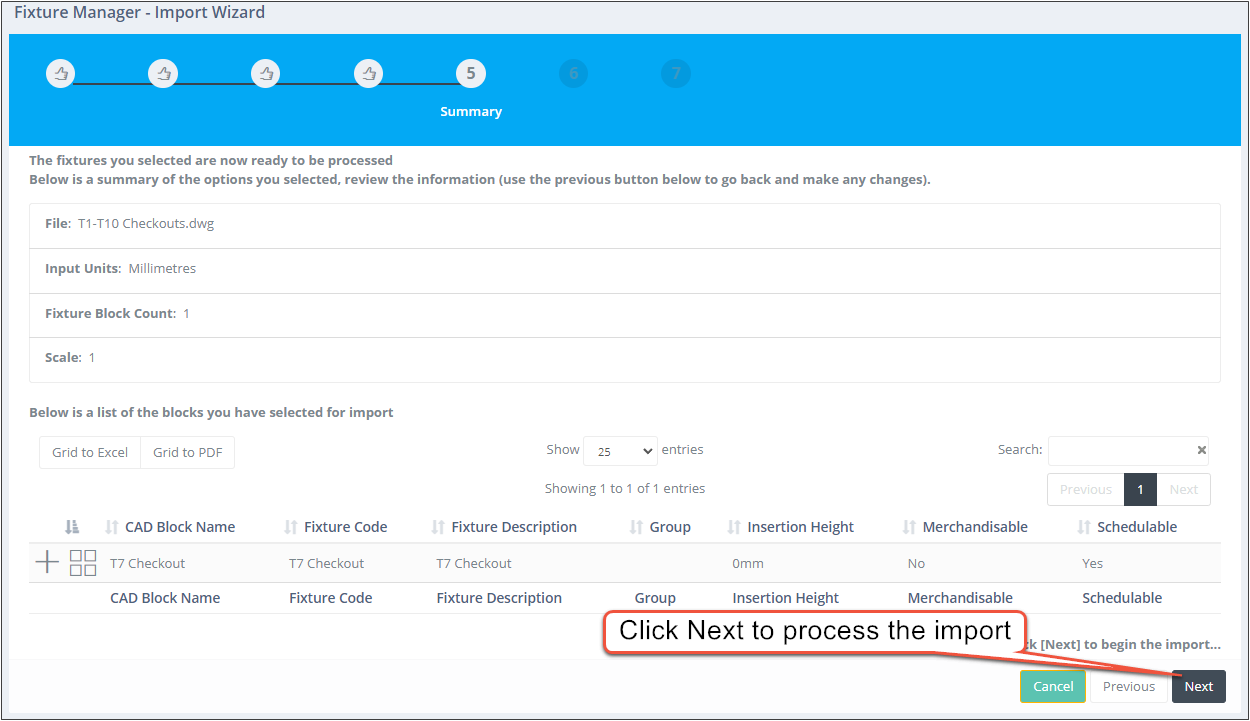

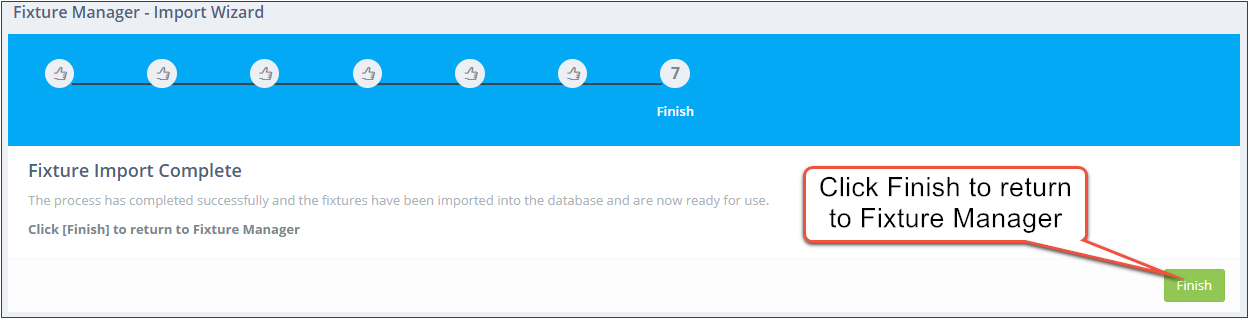

Import Summary screen:
